Dunkermotoren GR 63 x 25 Gearbox DC Motor & Encoder

Model: 88441 01883

Dunkermotoren GR 63 x 25 Gearbox DC Motor & Encoder

Inventory: 4 available.

Dunkermotoren GR 63 x 25 Gearbox DC Motor & Encoder

Great for CNC Projects and Much More.
This is a high quality name brand German made precision Gear motor that can be used for a wide variety of applications and is comparable with other units costing over $700.00 for high end medical equipment drive components.

Specs.

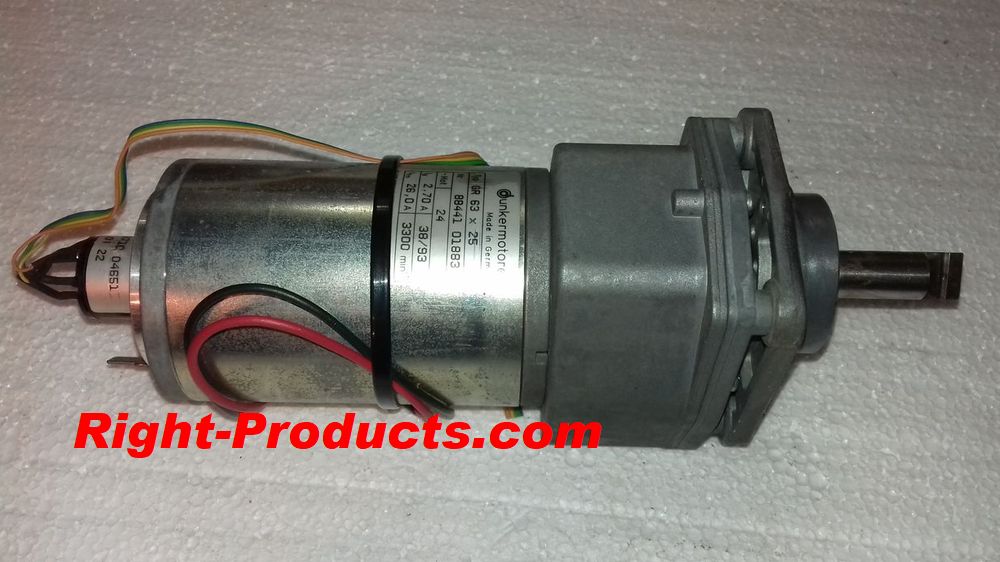

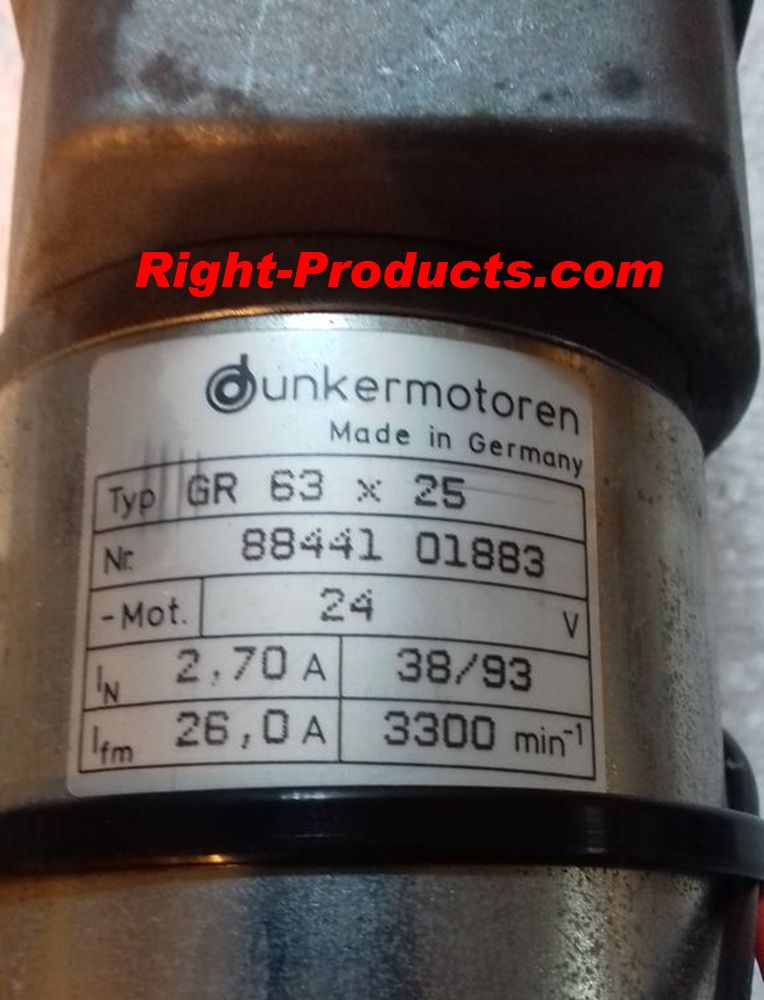

Dunkermotoren Permanent Magnet DC Gearmotor: GR 63 x 25
Model: 88441 01883
Rated Voltage 24 volts
Rated Current 2.7 amps
Nom. speed 3300 rpm
+ Motor with Spur Gearbox ZG 80 38/93

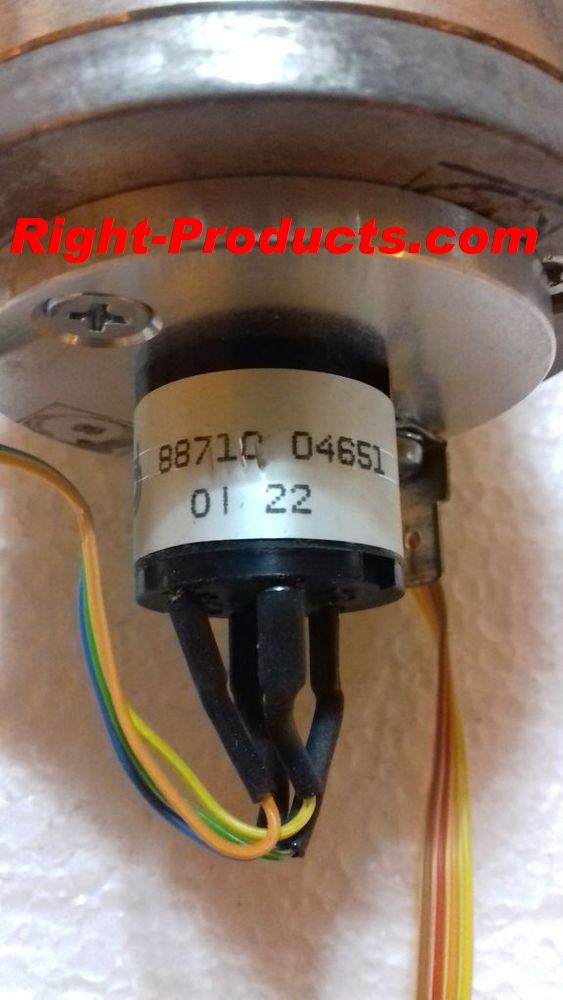

+ Digital Encoder 88710 04651

The type GR 63 motors have permanent magnets and high power at small
volume and thus especially suited for industrial applications, such as
– Computer and office machines
– Pumps and compressors
– Industrial blowers
– Welding technics
– General machine construction
– Medical equipment
– Door operating drives

Design
These motors are rigidly built and need no maintenance during their lifetime.
The rotor runs in ball bearings. The bearing plates are of die cast zinc.

Technology of gear design
PLG – Planetary gears
ZG – Spur gears
SG – Worm gears

General recommendations for the choice of a gear motor
Spur gears resp.planetary gears have a higher efficiency than worm gears and
are to be preferred whenever possible.

The operating speed of gears with D.C.motors is mainly depending on the
voltage, load and the motor winding. The advantage of D.C.motors, in
comparison to induction motors, is that practically any speed can be realized
by a suitable choice of winding (winding turns and wire diameter).

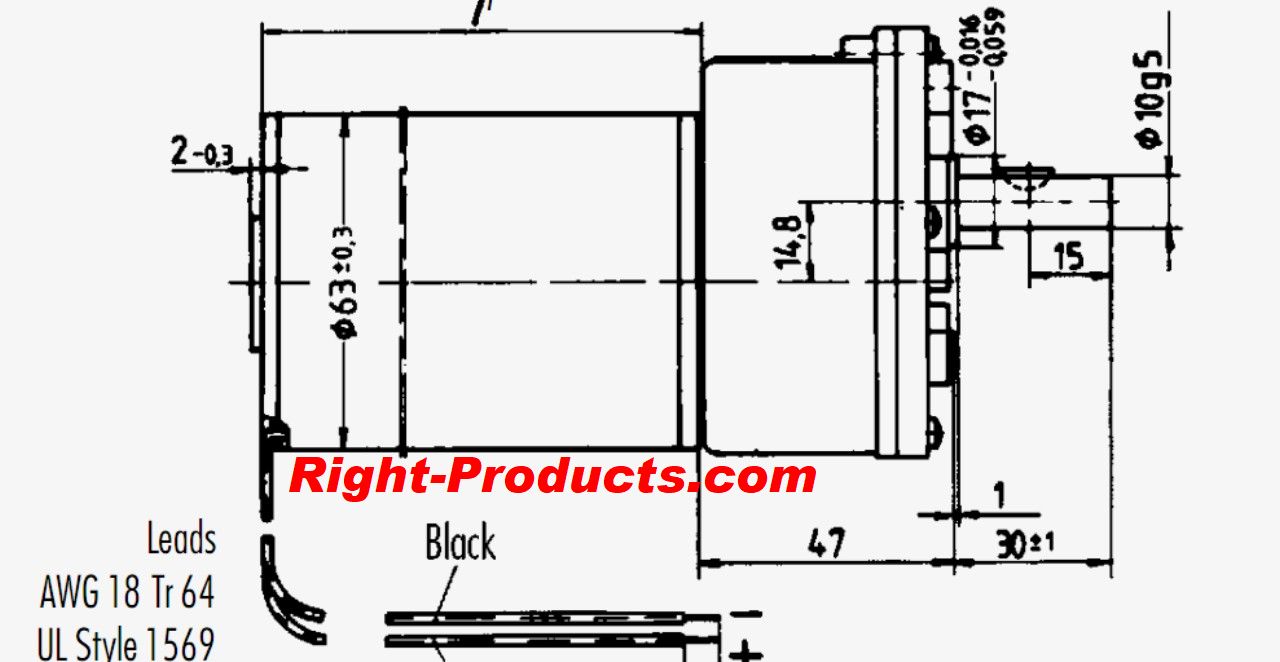

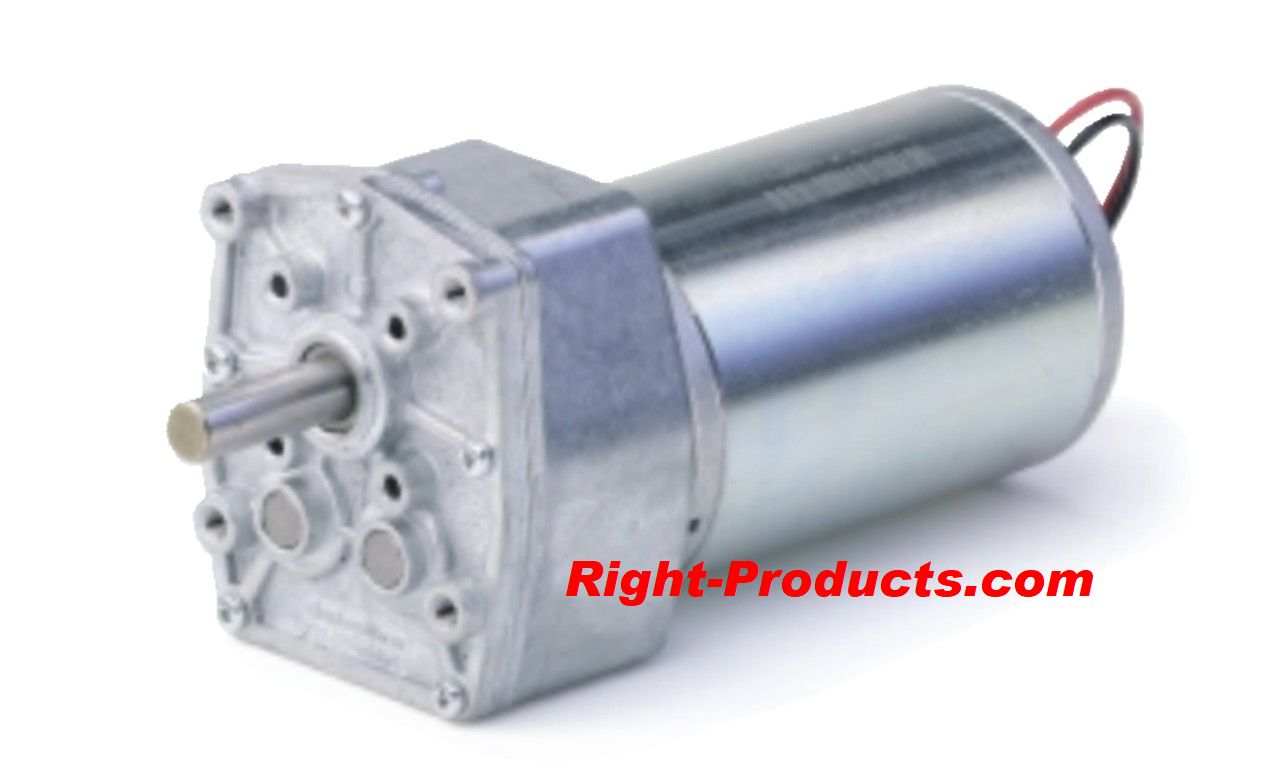

Motor GR 63 with Spur Gear ZG 80

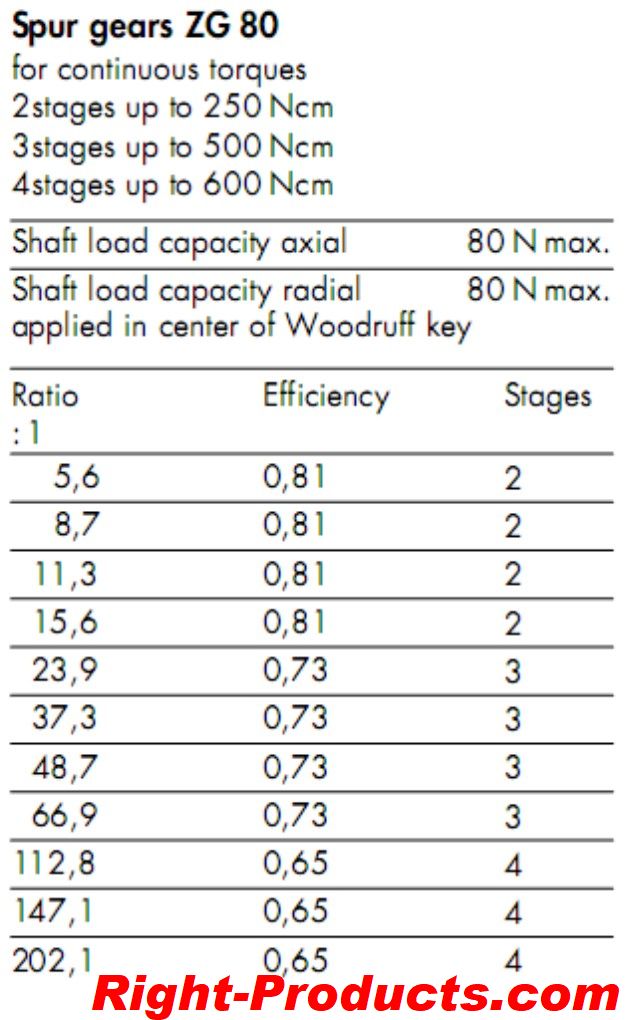

Spur gear ZG 80

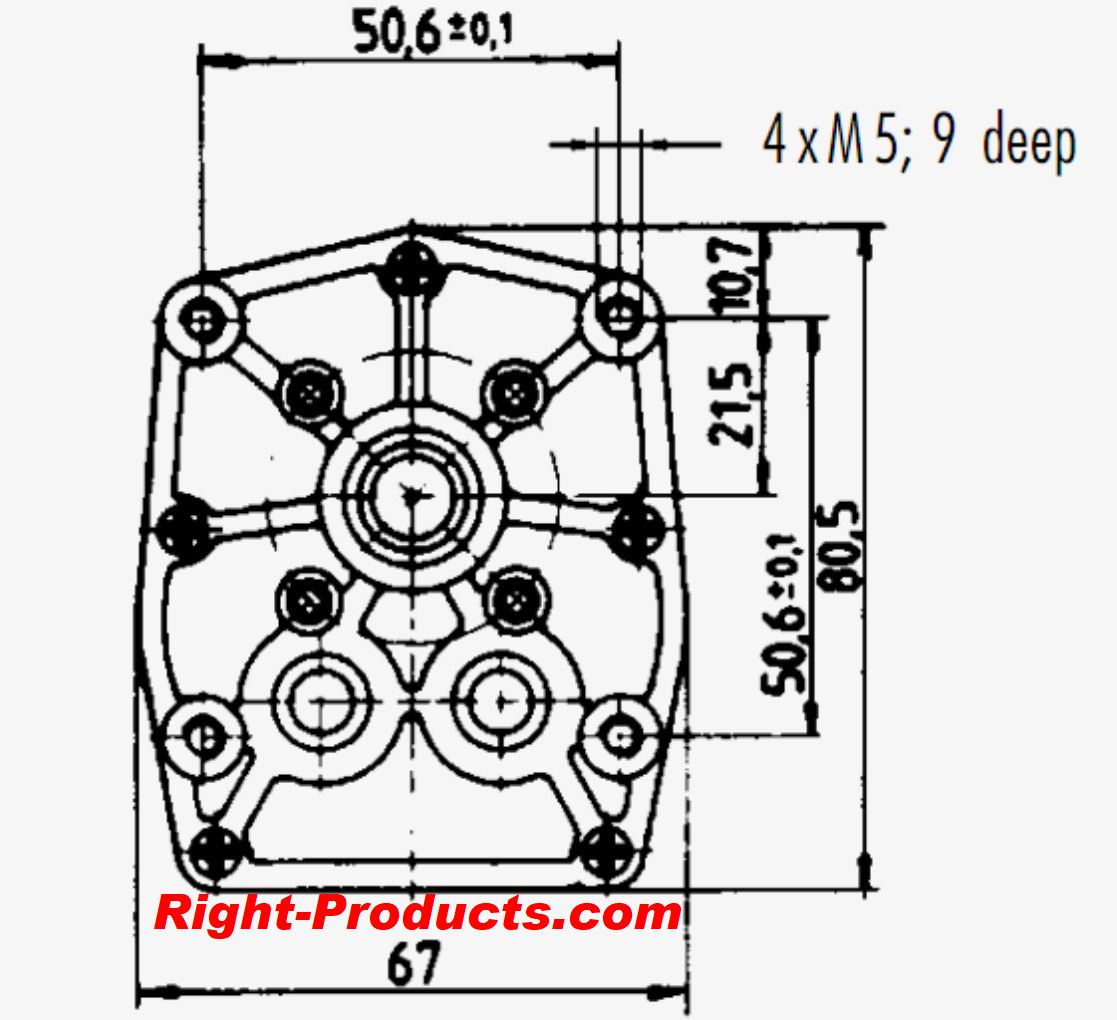

The zinc die-cast housing is designed for flange mounting.
The gearing is made of steel and the first stage is made of laminated plastic.
Partial using of helical wheels gives the gears quiet running and a high service life.
The gear output shaft runs in a self lubricating sintered bearing bush.

*Above information obtained from Mfg published literature believed to be accurate as located however seller cannot guarantee accuracy and assumes no responsibility for discrepancies if any.

dc_dunkermotoren.pdf

Specification believed to be as accurate from mfg. spec data posted with no warranties for your specific electronic needs or electrical abilities, faults or errors on installations, drivers, supply power or infinite other factors that may effect performance of the unit.
Buyer is to determine suitability of their needs in items prior to purchase as all sales are final.
