GOULDS ITT VERTICAL G & L SERIES SSV 1/2 hp CENTRIFUGAL PUMP 1SVA7C1F4

VERTICAL MULTISTAGE CENTRIFUGAL PUMP

GOULDS 1SVA7C1F4 VERTICAL G & L SERIES SSV 1/2 hp CENTRIFUGAL PUMP - Right-Products.com

Catalog Num: 1SVA7C1F4

Inventory: 1 available.

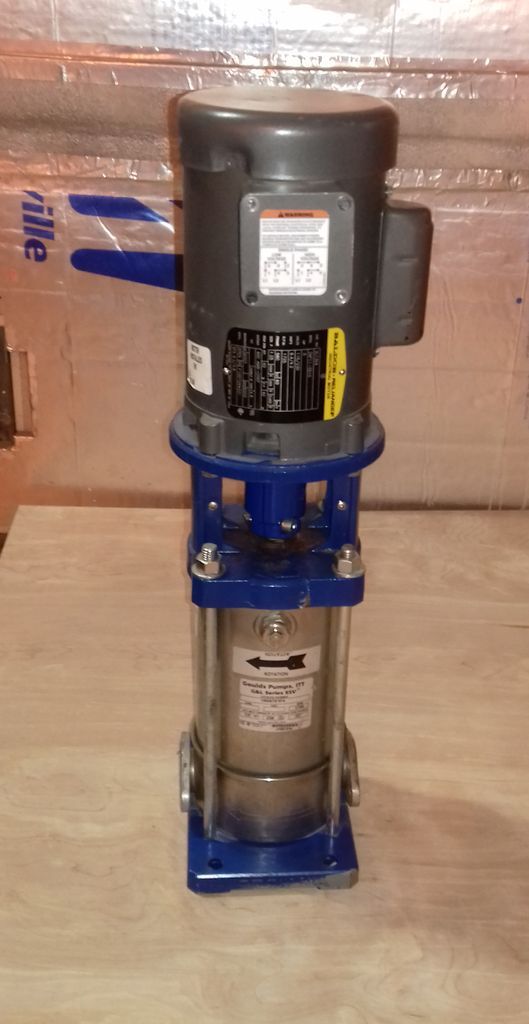

 New Surplus Pump

Goulds Pumps, ITT
G&L Series SSV
Catalog Num: 1SVA7C1F4

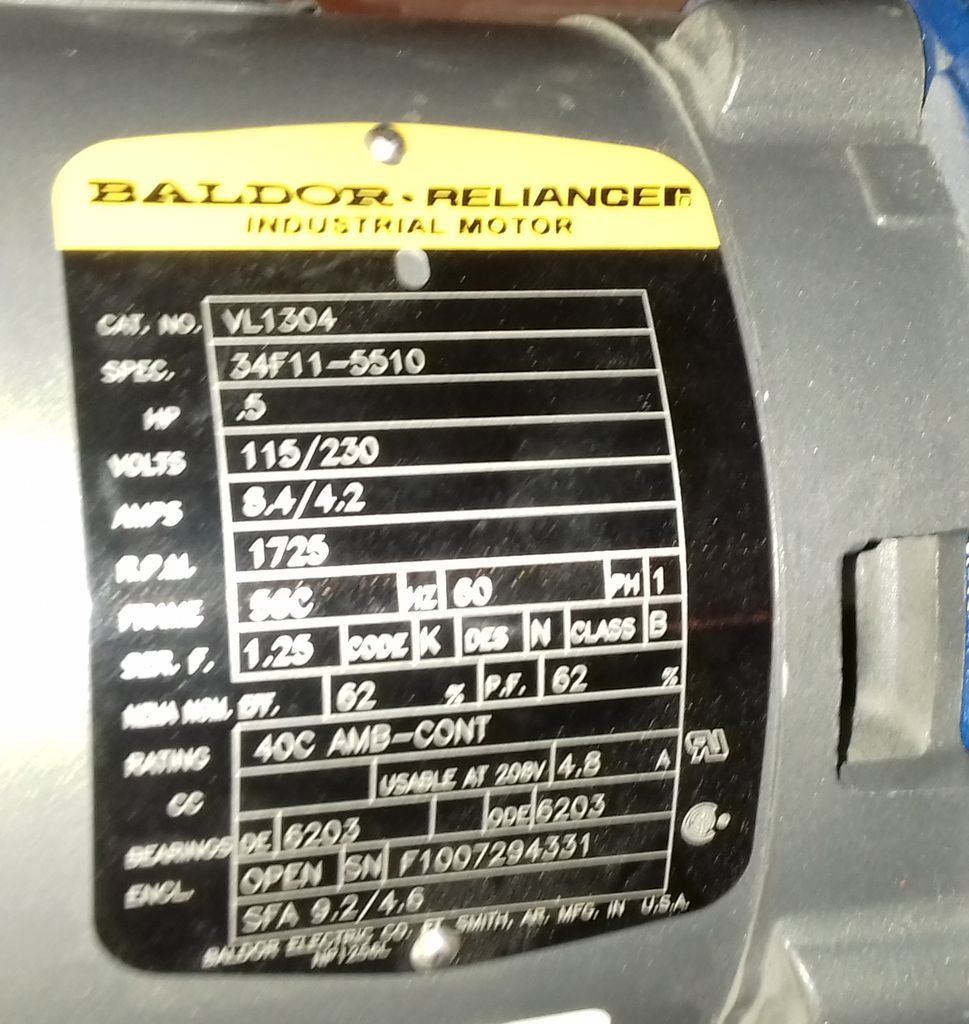

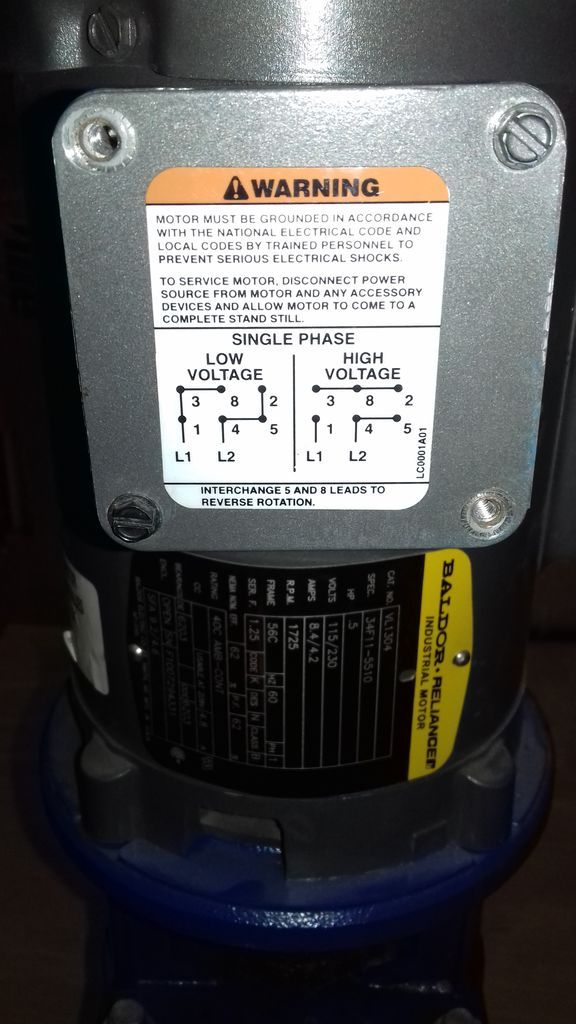

Baldor Motor 1/2 hp

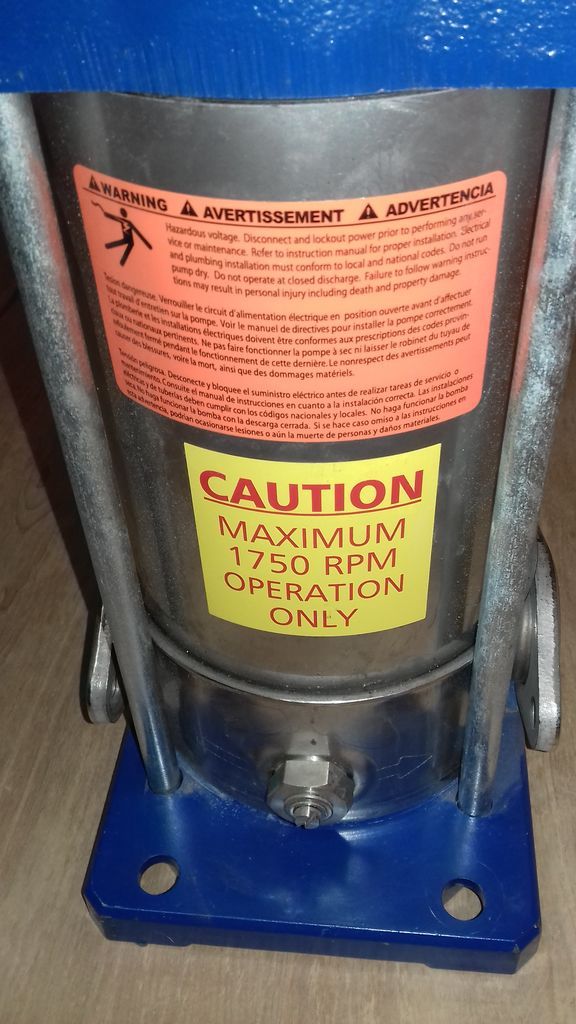

1750 rpm
230 PSI Max

1SVA7C1F4
1 = 15 GPM
SV = Stainless Vertical
A = 304 stainless steel, in-line NPT threaded oval flange connections (1, 2, 3 only)
7 = 60 Hz, 1750 RPM, 208-230, 460 V
C = 1/2 hp
1 = 1 PH, ODP
F = 6 Stages
4 = Silicon Carbide Graphite Filled Rotary Seal
    Silicon Carbide Graphite Filled StationarySeal
    Elastomer Viton

SSV Product Range 1SV
Nominal Flow (GPM) 15
Flow Range (GPM) 2 – 22
Max. Head (Ft) 1100
Max. Working Pressure (PSI) 2 360 PSIG
Temperature Range -20ΊF to 250ΊF (-30ΊC to -121ΊC)
Motor Power (HP) 1/2 HP
SVA AISI 304SS

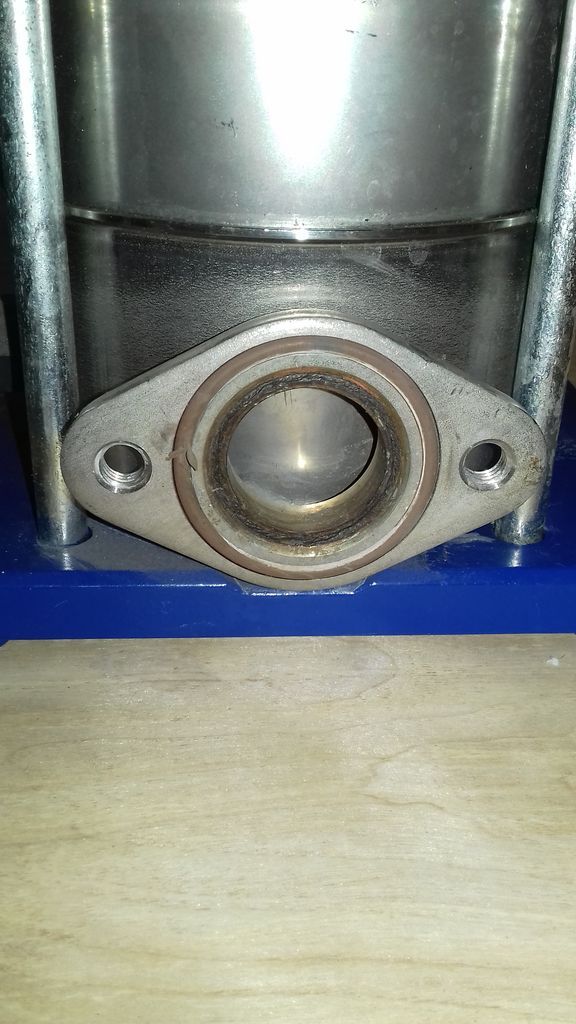

SVA – Oval NPT 1" NPT (female)

Typical Applications of SSV Series Multi-Stage Pumps

Water Supply and Pressure Boosting
• Pressure boosting in buildings, hotels, residential complexes
• Pressure booster stations, supply of water networks
• Booster packages
Water Treatment
• Ultrafiltration systems
• Reverse osmosis systems
• Water softeners and de-mineralization
• Distillation systems
• Filtration
Light Industry
• Washing and cleaning plants (washing and degreasing of mechanical
parts, car and truck wash tunnels, washing of electronic industry circuits)
• Commercial washers
• Firefighting system pumps
Irrigation and Agriculture
• Greenhouses
• Humidifiers
• Sprinkler irrigation
Heating, Ventilation and Air Conditioning (HVAC)
• Cooling towers and systems
• Temperature control systems
• Refrigerators
• Induction heating
• Heat exchanges
• Boilers
• Water re circulation and heating


Applications
• Handling of water, free of suspended solids, in the municipal,
industrial and agricultural markets
• Pressure boosting and water supply systems
• Fire fighting jockey pumps
• Irrigation systems
• Wash systems
• Water treatment plants: reverse osmosis
• Handling of moderately aggressive liquids, demineralized water,
water and glycol, etc.
• Circulation of hot and cold water for heating, cooling and
conditioning systems
• Boiler feed

Specifications
PUMP
The SSV pump is a non-self priming vertical multistage pump coupled to
a standard motor.
The liquid end, located between the upper cover and the pump casing, is
held in place by tie rods. The pump casing is available with different
configurations and connection types.
• Delivery: up to 600 GPM
• Head: up to 1200 feet
• Temperature of pumped liquid:
-20ΊF to 250ΊF (-30ΊC to 120ΊC) standard version
• Maximum operating pressure
– with oval flanges: 230 PSI (15 bar)
– with round flanges or Victaulic: 360 PSI (25 bar)
– SV33, 46: 230, 360 or 575 PSI (16, 25 or 40 bar)*
– SV 66, 92: 230 or 360 PSI (16 or 25 bar)*
• Direction of rotation: clockwise looking at the pump from the top down
(marked with an arrow on the adapter and on the coupling).

SSV Characteristics

• Vertical multistage centrifugal pump. All metal parts in contact with the
pumped liquid are made of stainless steel.
• The following versions are available:
1SVA
A – Oval flanges (NPT), in-line delivery and suction ports, AISI 304

• Reduced axial thrusts enable the use of standard NEMA TC motors that
are easily found in the market.
• Seal housing chamber designed to prevent the accumulation of air in the
critical area next to the mechanical seal
• Mechanical seal according to EN 12756 (ex DIN 24960) and ISO 3069
• Versions with ANSI flanges that can be coupled to ANSI raised
face counter-flanges
• Threaded oval counter-flanges made of stainless steel are standard
supply for the A versions
• Easy maintenance. No special tools required for assembly or disassembly
• Standard version for temperatures ranging from:
-20ΊF to 250ΊF (30ΊC to 120ΊC)

Buyer is to determine suitability of their needs in items prior to purchase as all sales are final.

This unit is ready for shipment as shown See shipping sales terms below.

IMPORTANT NOTE> This unit is priced substantially lower here Seller Direct on our web site then the selling price for the same unit we list elsewhere which would have other listing fees, commission fees, payment fees incurred from those web sites and added to the sale price.

It is entirely your choice of which outlet you wish to purchase from... However,
If you want the same unit for less money WITHOUT ALL THE EXTRA MIDDLEMAN FEES & COSTS ADDED then you can buy it here seller direct.  All the money you save will be your own to keep and use as you see fit.

Buy Now...Our Price $225.00
Once It's Gone... It's Gone!

Surplus, Save Money.

Ships From: SW Chicago Area, IL, 60441
Approximate Ship Weight 60 lbs
Wooden Crate
 UPS Ground



Note: Seller does its best to provide product information as available from manufactures but can not guarantee accuracy of researched generally available data.

Sold on an "as is, where is" basis and there are no warranties, guarantees, returns, exchanges or refunds.
